Products
Our products are manufactured in the United States, ensuring stronger quality control, stable specifications, and dependable performance on every build. Domestic production also shortens lead times and supports consistent availability.

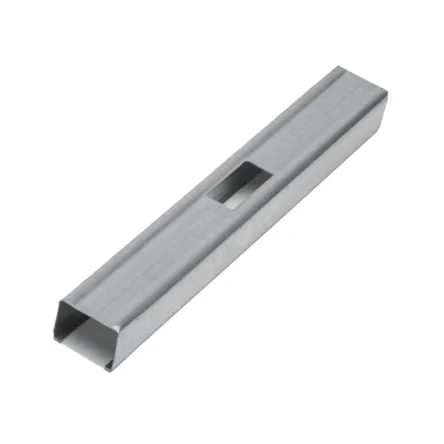

Stud
This profile type is applied vertically to provide support in partition wall systems. Manufactured from hot dipped galvanized coil.
Width options 1-5/8”, 2-1/2”, 3-1/2”, 3-5/8”, 4”, 6”, 8”, 10”
Flange options 1-1/4”, 1-3/8”, 1-5/8”, 2”, 2-1/2”, 3”
Thickness 25GA EQ-15mil, 20GA EQ-18mil, 25GA-18mil, 20GA-33mil, 18GA-43mil, 16GA-54mil, 14GA-68mil, 12GA-97mil

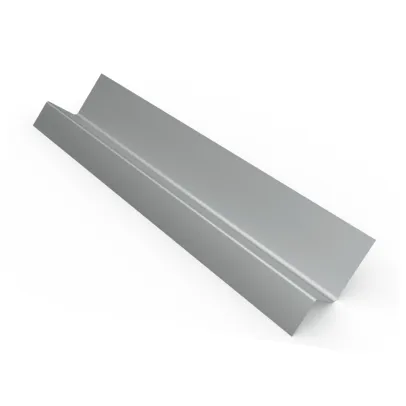

Z Channel
Z shaped metal framing used to level uneven wall and ceiling surfaces for the attachment of gypsum and flat wall board materials. Manufactured from hot dipped galvanized coil.
Heights options 1”, 1-1/2”, 2”, 2-1/2”, 3”
Thickness 25GA-18mil, 20GA-30mil

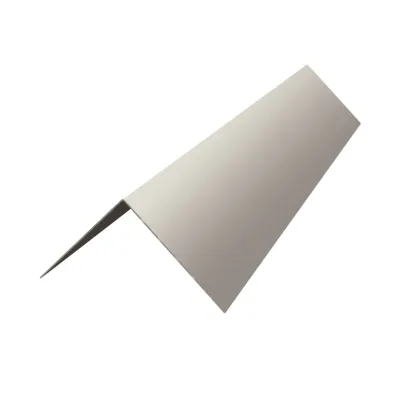

Utility Angle
The utility angle (or corner angle) is a multipurpose galvanized angle used in dozens of framing applications. Some of the most common applications include lapped framing conditions, soffit framing, floor and ceiling runner, chase wall construction and laminated gypsum drywall partitions. Utility angles are used to connect, reinforce, or secure metal stud framing in various drywall applications. Manufactured from hot dipped galvanized coil.
Leg size options 1”x1”, 2”x2”, 3”x3”, 4”x4”, 3”x4”
Thickness 25GA-18mil, 20GA-30mil
Flat Stock
Flat stock pieces, also referred to as straps, are available in multiple widths and in a full range of gauges. Flat straps are used for lateral bracing, joist bridging and diagonal bracing to prevent racking. Manufactured from hot dipped galvanized coil.
Width options 2”, 3”, 4”, 6”, 8”
Thickness 20GA, 18GA, 16GA, 14GA
Length 10’

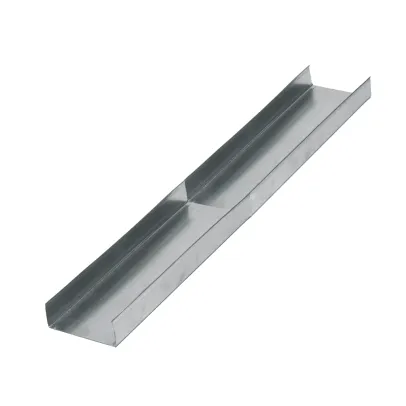

Track
This profile type is used for aligning drywall studs on the floor and ceiling in partition wall systems. Manufactured from hot dipped galvanized coil.
Width options 1-5/8”, 2-1/2”, 3-1/2”, 3-5/8”, 4”, 6”, 8”, 10”
Flange options 1-1/4”, 1-1/2”, 2”
Thickness 25GA EQ-15mil, 20GA EQ-18mil, 25GA-18mil, 20GA-33mil, 18GA-43mil,16GA-54mil, 14GA-68mil, 12GA-97mil

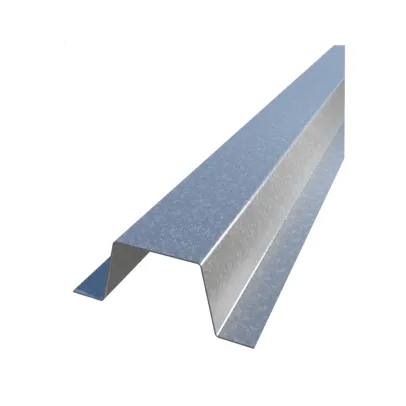

Furring Channel
A metal framing component also referred to as hat channel, used in construction to create a surface for attaching materials like drywall or insulation. Manufactured from hot dipped galvanized coil.
Heights option 7/8”
Width option 2-3/4”
Thickness 25GA EQ-15mil, 20GA EQ-18mil

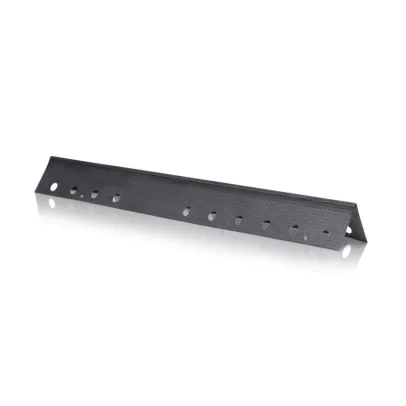

Corner Bead
Galvanized steel corner bead is made from corrosion resistant material that provides solid protection at drywall corners. The corner bead is designed with a straight screed for high-quality finishing. This traditional drywall product can be easily installed without specialized tools, it can be nailed, stapled, or screwed into place. The flanges are deeply knurled and perforated for excellent joint compound adhesion. Manufactured from hot dipped galvanized coil.
Leg size 1-1/4”x1-1/4”
Thickness 13mil
Length 10’

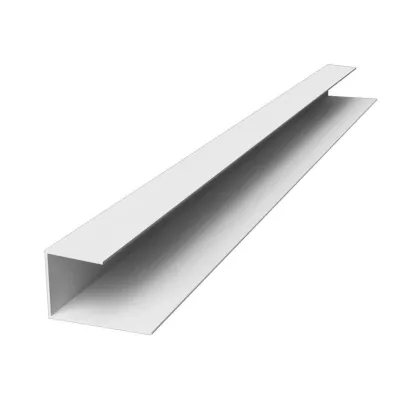

J BEAD
Metal J-Trims are strong, reveal-type galvanized steel casings that provide maximum protection and neat finished edges to drywall terminations around door and window openings. Metal J-Trims also deliver a clean trim line at intersections or where gypsum panels abut dissimilar surfaces such as columns and window mullions. Hemmed-edges allow for quick installation and do not require joint compound for finishing. Manufactured from hot dipped galvanized coil.
Width options 1/2”, 5/8”
Thickness 15mil
Length 10’

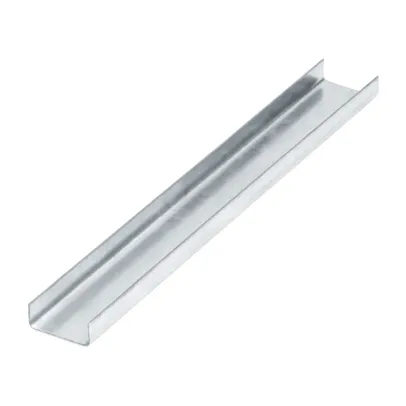

U Channel
Cold Rolled U Channel has a large number of uses ranging from cross furring in drop ceiling assemblies to mechanical bridging for stud walls. Manufactured from hot dipped galvanized coil.
Width options 1-1/2”, 2”, 2-1/2”
Leg options 1/2“
Thickness 16GA-54mil

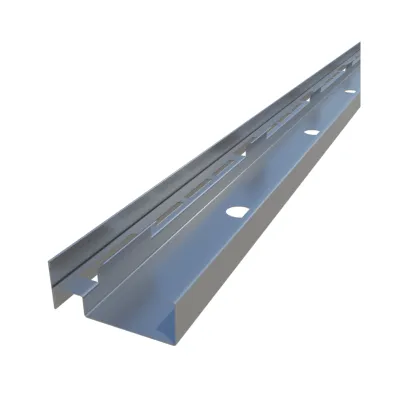

Shaft Wall Stud
Also referred to as a C-H Stud, this product is easy to connect with a J Runner to create a durable yet affordable shaft wall system. We also provide J Runner track.
Width option 2-1/2”, 4”
Thickness 25GA-22mil, 20GA-33mil, 18GA-43mil

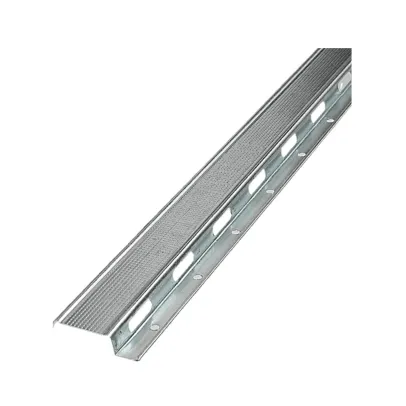

RC-1 Resilient Channel
RC-1 Resilient Channel used as cross furring members for resilient attachment of gypsum wallboard or lath on ceilings and partitions. It is one of the most effective, low-cost methods of improving sound transmission loss through wood and steel frame partitions.
Depth option 1/2”
Width option 2-1/8”
Thickness 25GA-18mil
Length 12’

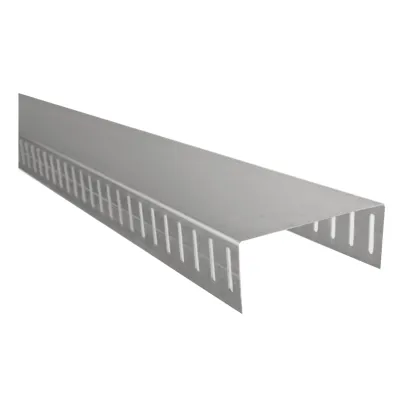

Slotted Track
Slotted Track is a cost-effective deflection system engineered to deliver unparalleled flexibility. It facilitates swift, simple, and adaptable stud installations, offering enhanced convenience. Featuring pre-punched 1½” slots spaced at 1″ o.c. to accommodate any stud spacing,2½” leg height for increased strength and performance.
Widthoptions 2-1/2”, 3-5/8”, 4”, 6”, 8”, 10”
Flange options 2-1/2”, 3”
Thickness 25GA-18mil, 20GA-33mil, 18GA-43mil,16GA-54mil, 14GA-68mil
